#FreeDavis project This project aims to provide a user-installable, idiot-proof and reliable way of accessing data provided by the instruments made by a company called Davis. The outdoor units are pretty accurate and reliable units, but to be honest, the inability to access / dump / mine / connect to the data directly, is a limiting factor.

##Desired functionality As the name suggests, the whole thing should be an open system, based on open software. From the things that the system should be capable of:

1. receiving the data from outdoor sensors (obviously)
2. Logging and storing the data
3. Display / analysis / plotting
4. Possibly sending of data

##Data receiver Data receiver part is accomplished by a CC1101 wireless chip connected to an Arduino mini, both working on 3.3V. Dtat is being sent via serial Rx Tx pins of the arduino.

##Data logger Current working solution incorporates an additional connection of a RaspberryPi that loggs data sent by the Arduino via serial interface.

• data extraction written in python
• data feeder written in python (influxDB connector)
• data logging and storing is accomplished via InfluxDB (subject to change?)
• data serving python app based on cherrypy
• UI based on bootstrap3
• graphing by Dygraphs.js

Hardware used:

Arduino mini pro 3.3V RaspberryPi (any version basically) some wiring together (todo: picture of wiring in svg)

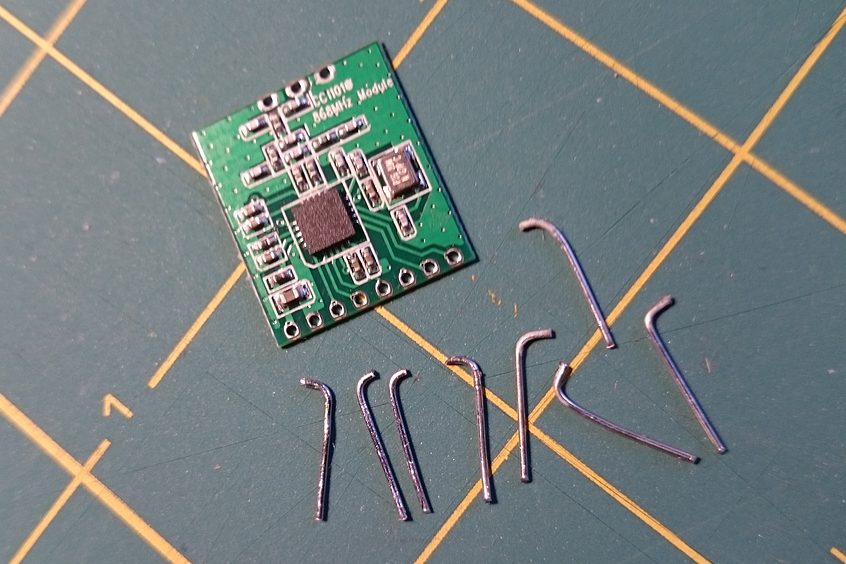

(Pins counted from left on CC1101)

    CC1101    |  Arduino mini Pro 3.3V
    -----------------------------------
    1 – Vcc   |  3.3V
    2 – GND   |  GND
    3 – MISO  |  PIN11
    4 – SCLK  |  PIN13
    5 – MOSI  |  PIN12
    6 – GDO2  |  PIN03
    7 – GDO0  |  PIN02
    8 – SCN   |  PIN10

    Arduino Mini Pro 3.3V   | RaspberryPi
    -------------------------------------
    Vcc                     | 01 - 3.3V
    GND                     | 06 - GND
    3 - Tx                  | 10 - S0 Rx
    2 - Rx                  | 08 - S0 Tx
